RUGGED, RELIABLE PROCESS COOLING
We have an industrial chiller to suit any application, and each model is the same high-quality, straightforward product that you’ve come to expect from MTA. Our chillers bring cool water to your process as easily as turning on a tap.
TAEevo Tech
WORLD-RENOWNED INDUSTRIAL AIR-COOLED CHILLERS
STANDARD FEATURES
- Environmentally-friendly R410-A refrigerant
-
High performance hermetic reciprocating or
scroll compressors - Proprietary evaporator tank, including a finned pack evaporator with copper tubes and aluminum fins, integrated into the tank
- Centrifugal pump designed for 43.5 psig; duplex pumps available upon request
- Crankcase heaters on compressors
- Available in 460/3/60Hz and 230/3/60Hz (230/3/60Hz only available on certain models)
AVAILABLE OPTIONS:
- Centrifugal fans
- High pressure pump (72.5 psig)
- Water-cooled version (TWEevo Tech)
- Non-ferrous water circuit
- Low ambient package (VFD) for down to -4° F ambient
- 400/3/50Hz available upon request

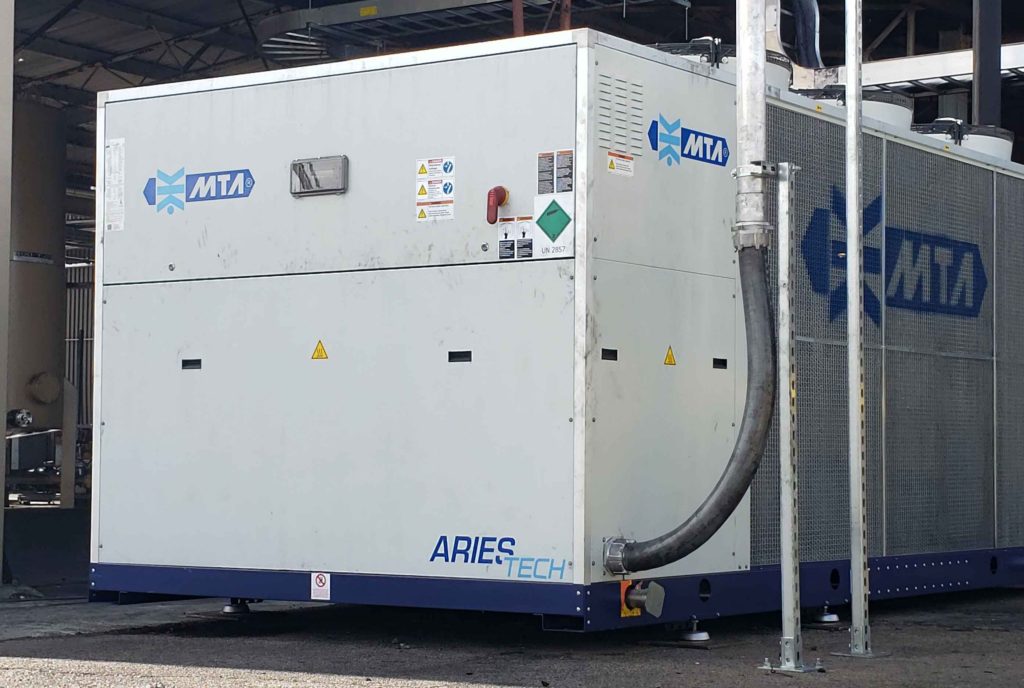

ARIES Tech 2
HIGH CAPACITY INDUSTRIAL AIR-COOLED CHILLERS
STANDARD FEATURES
- Environmentally-friendly R410-A refrigerant
- Built-in redundancy with two independent refrigerant circuits and four scroll compressors per circuit
- Industrial grade, dual-circuit shell and tube evaporator
- Energy-saving axial fans controlled to maintain optimum condensing pressure
- Compressor isolation valves for ease of service
- Cleanable metal filters protect condenser coils from debris and hail
- Spring-type vibration isolators
- Modbus (RTU & TC/IP) communication
- Built-in master/slave control for second parallel AST2
- UL508a control panel and ULR electrical components
- 460/3/60Hz electrical supply
AVAILABLE OPTIONS:
- On-board single or dual (redundant) coolant loop circulation pumps
- On-board coolant buffer tank
- Low ambient package with condenser fan speed control and control panel heater
- Condenser heat recovery
- Low coolant temperature configuration
- UL 1995 certification
